Windows下搭建Vscode + Ozone + CubeMX + Arm GNU Toolchain + Makefile STM32开发环境

一、 安装Vscode、Ozone和CubeMX#

略.

二、安装Arm GNU Toolchain#

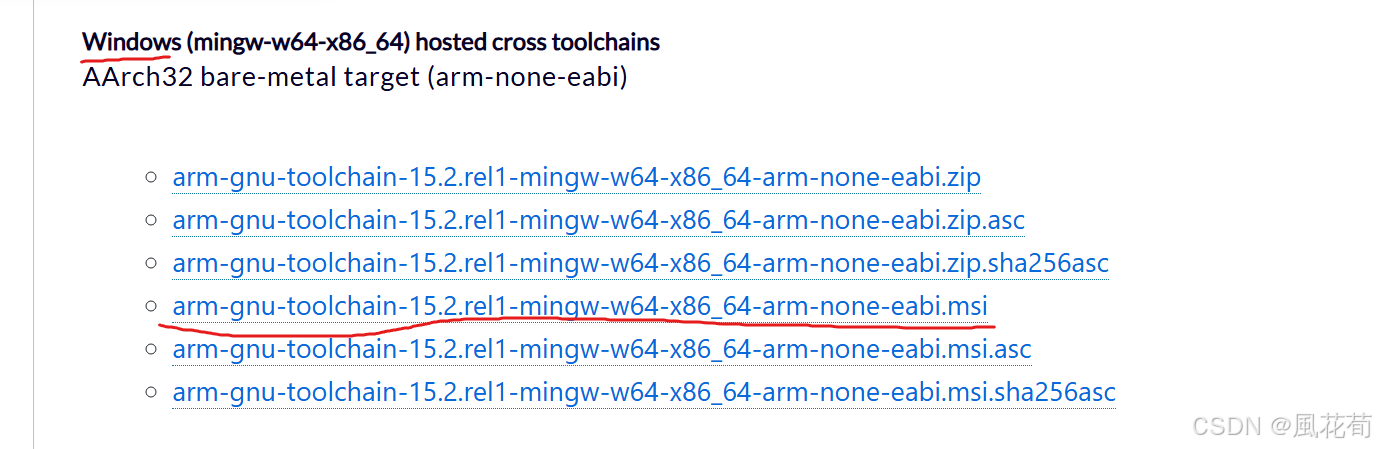

下载地址：Arm GNU Toolchain

下载arm-gnu-toolchain-15.2.rel1-mingw-w64-x86_64-arm-none-eabi.msi

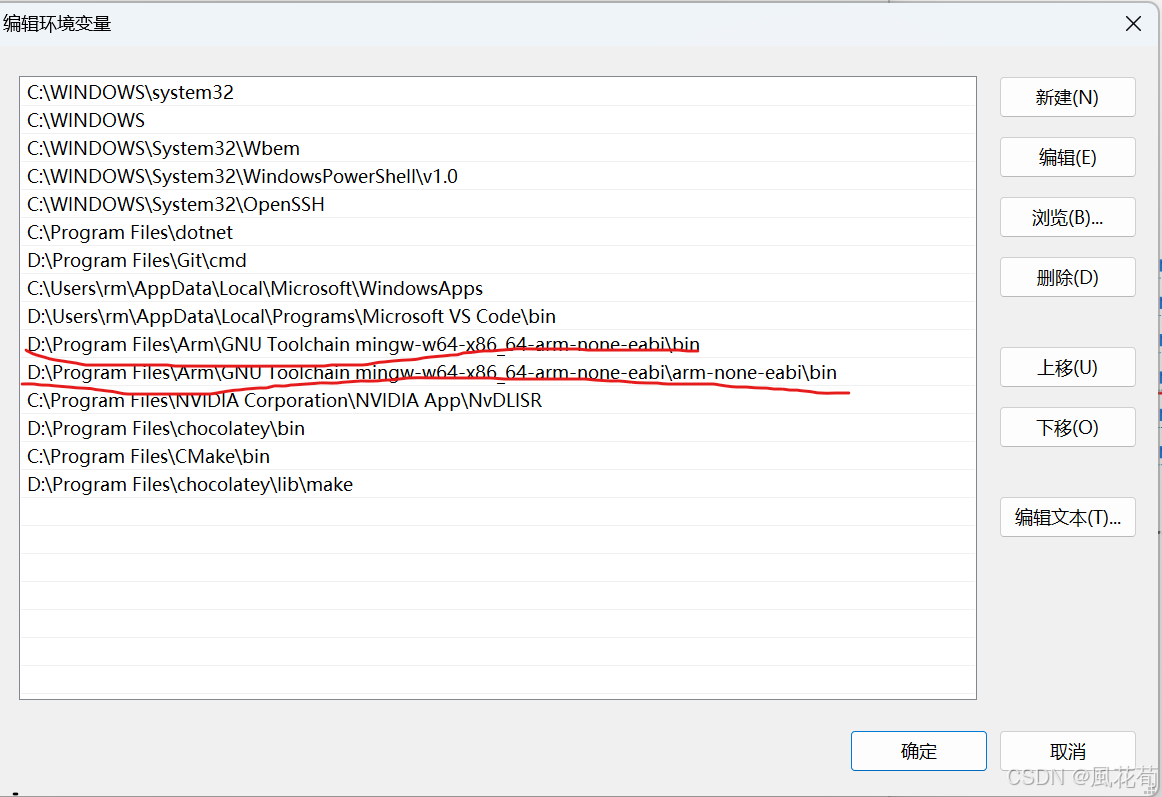

最好安装到D盘，也可以下载.zip，自己设置环境变量

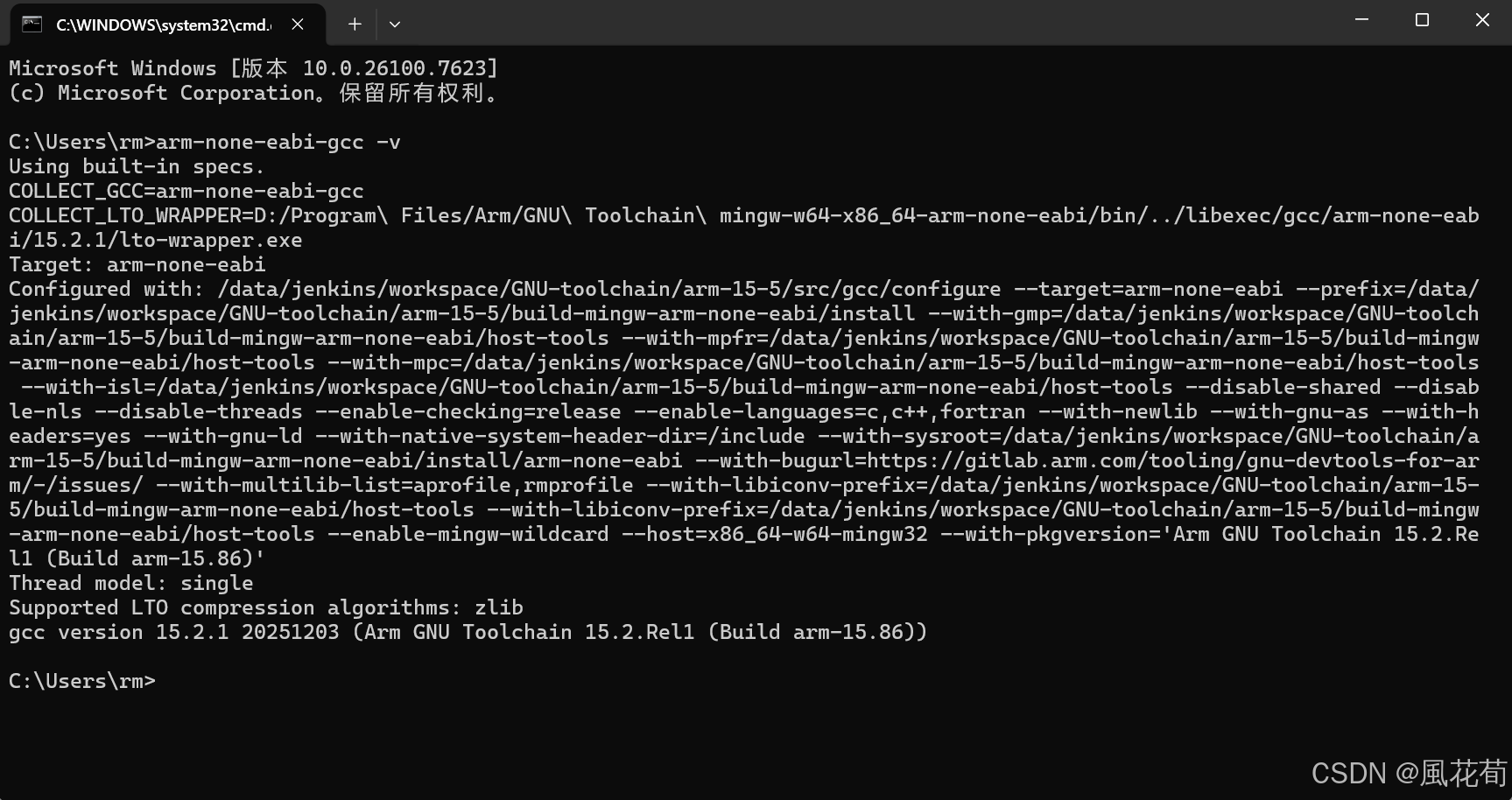

输入arm-none-eabi-gcc -v看下环境是否设置成功

三、安装chocolatey#

管理员模式运行PowerShell，然后输入以下代码

# 设置安装目录
[System.Environment]::SetEnvironmentVariable('ChocolateyInstall', 'D:\Your\ChocolateyPath', 'Machine')

# 安装chocolatey
Set-ExecutionPolicy Bypass -Scope Process -Force; [System.Net.ServicePointManager]::SecurityProtocol = [System.Net.ServicePointManager]::SecurityProtocol -bor 3072; iex ((New-Object System.Net.WebClient).DownloadString('https://community.chocolatey.org/install.ps1'))

四、安装make#

# 先设置安装环境
choco config set cacheLocation "D:\ChocolateyCache"
choco config set customInstallLocation "D:\Program Files\chocolatey_install"

# 安装make
choco install make

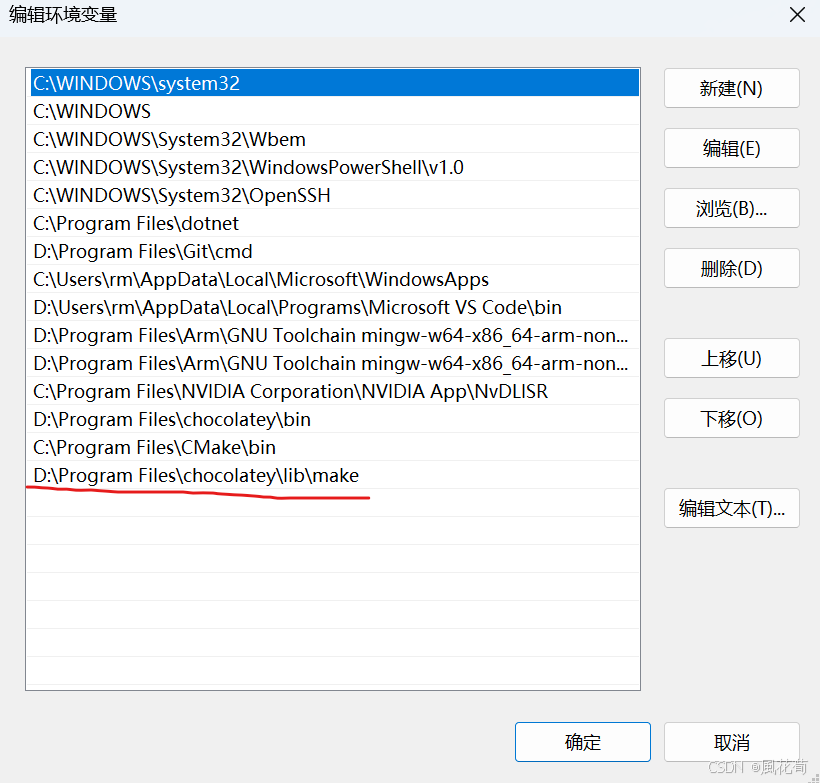

设置环境变量

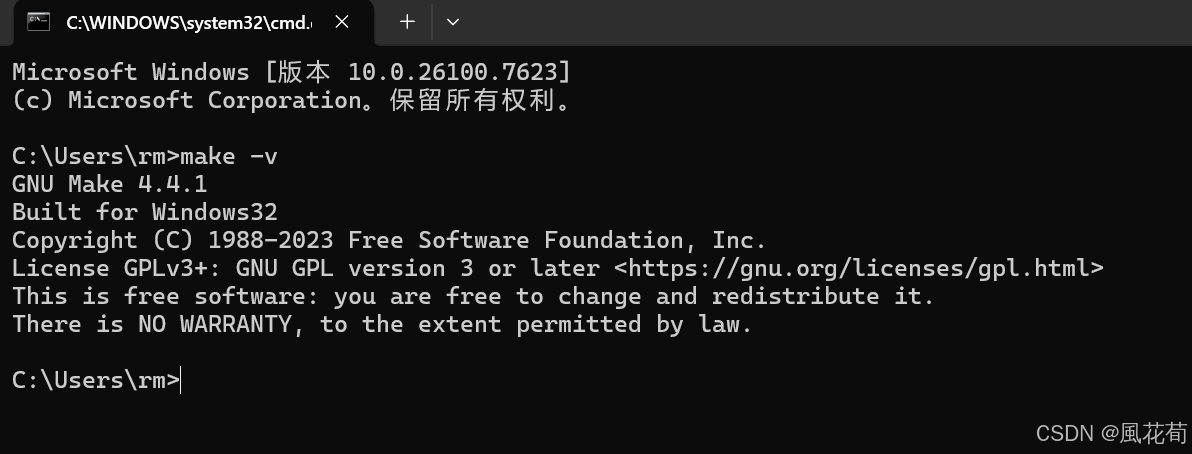

测试make是否安装成功

# 在cmd或者PowerShell中输入
make -v

至此本教程结束
